| Build-Manual 011 |
|
| Main | <<Prev | Next>> |

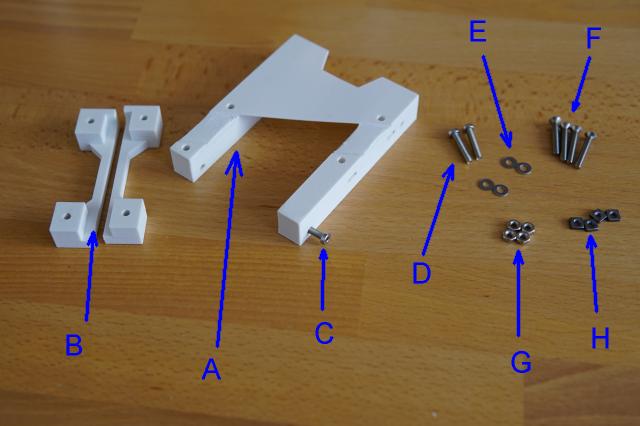

Parts:
| Number | Count | Name | Description | Image |
| A) | 1 | CutterSledge | Printed Part |
 |

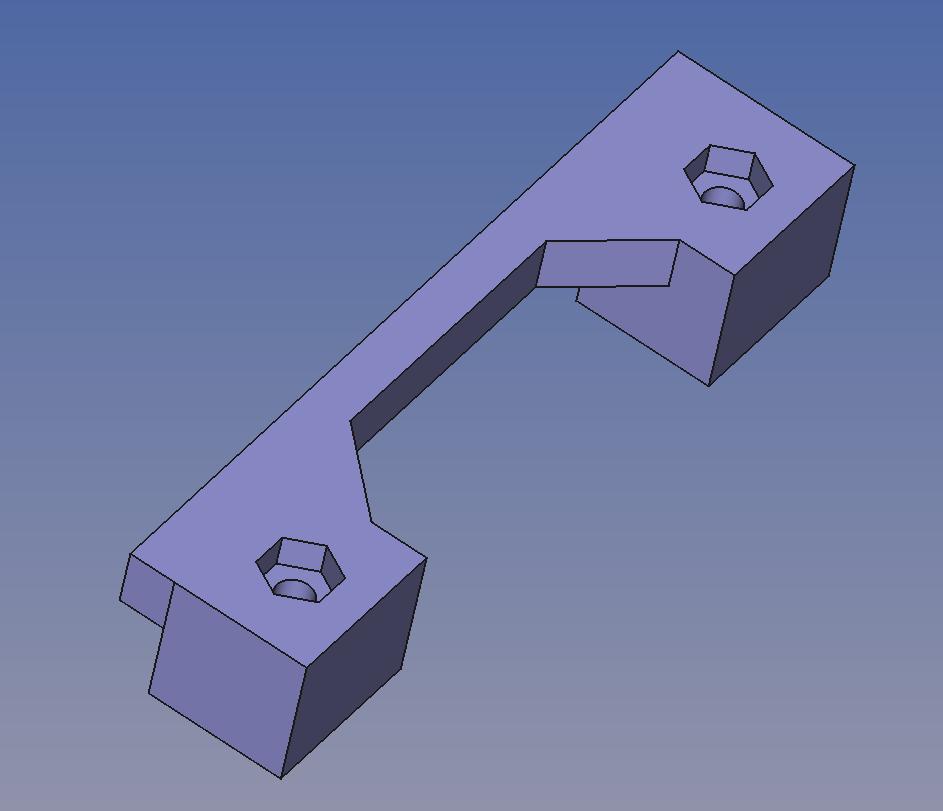

| B) | 2 | SledgeHolder | Printed Part |
 |
| C) | 2 | Screw M3x10 mm | https://www.schraubenking.at/M3-x-10mm-Zylinderschraube-DIN-7984-Edelstahl-A2-P006289 |
 |
| D) | 2 | Screw M3x16 mm | https://www.schraubenking.at/M3-x-16mm-Zylinderschraube-DIN-7984-Edelstahl-A2-P006291 |
|
| E) | 4 | Shim
M3
|
https://www.cncshop.at/Linearwelle-Praezisionswelle-R-06-mm-gehaertet-millimetergenauer-Zuschnitt |
 |
| F) | 2 | Countersunk Screw M3x20 mm | https://www.schraubenking.at/M3-x-20mm-Senkschrauben-DIN7991-Edelstahl-A2-P003632 |
 |
| G) | 4 | Nut M3 | https://www.schraubenking.at/M4-Sechskantmuttern-DIN-934-Edelstahl-A2-P000448 |
 |
| H) | 4 | Square nut M3 | https://www.schraubenking.at/M3-Vierkantmuttern-niedrig-DIN562-Edelstahl-A2-P005159 |
 |
Steps:
