| Build-Manual 024 |
|
| Main | <<Prev | Next>> |

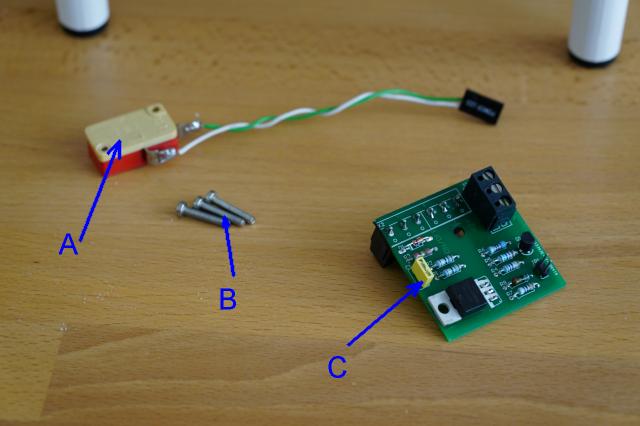

Parts:
| Number | Count | Name | Description | Image |

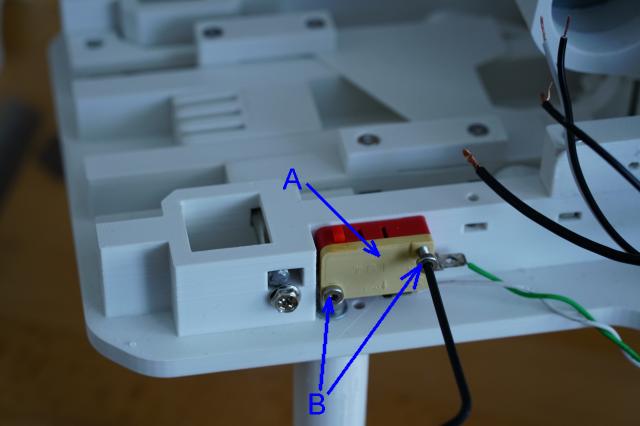

| A) | 1 | Micro Switch 1xclose | https://at.rs-online.com/web/p/mikroschalter/6822499/ |
 |

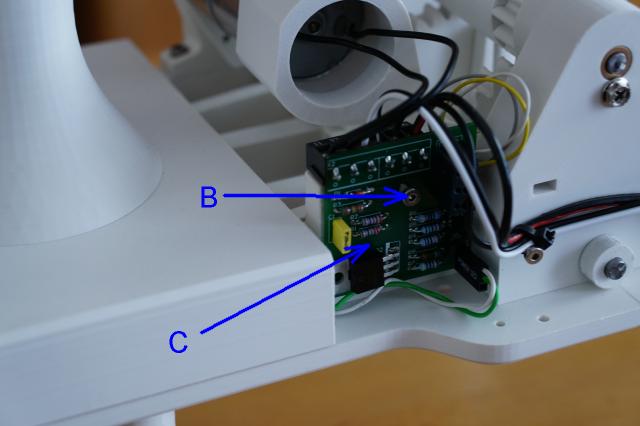

| B) | 3 | Screw M3x16mm | https://www.schraubenking.at/M3-x-16mm-Zylinderschraube-DIN-7984-Edelstahl-A2-P006291 |
 |

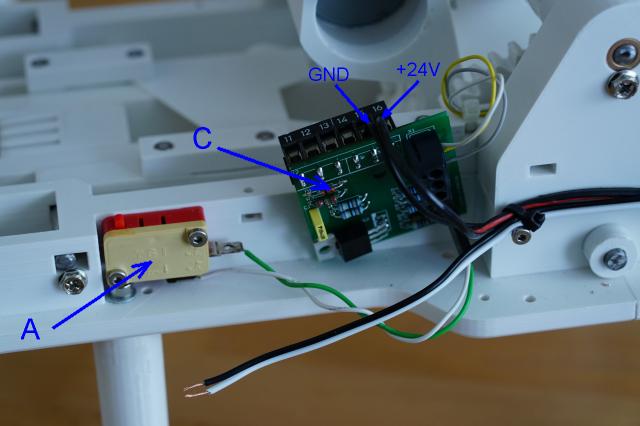

| C) | 1 | Control Board |
Manufacturer:

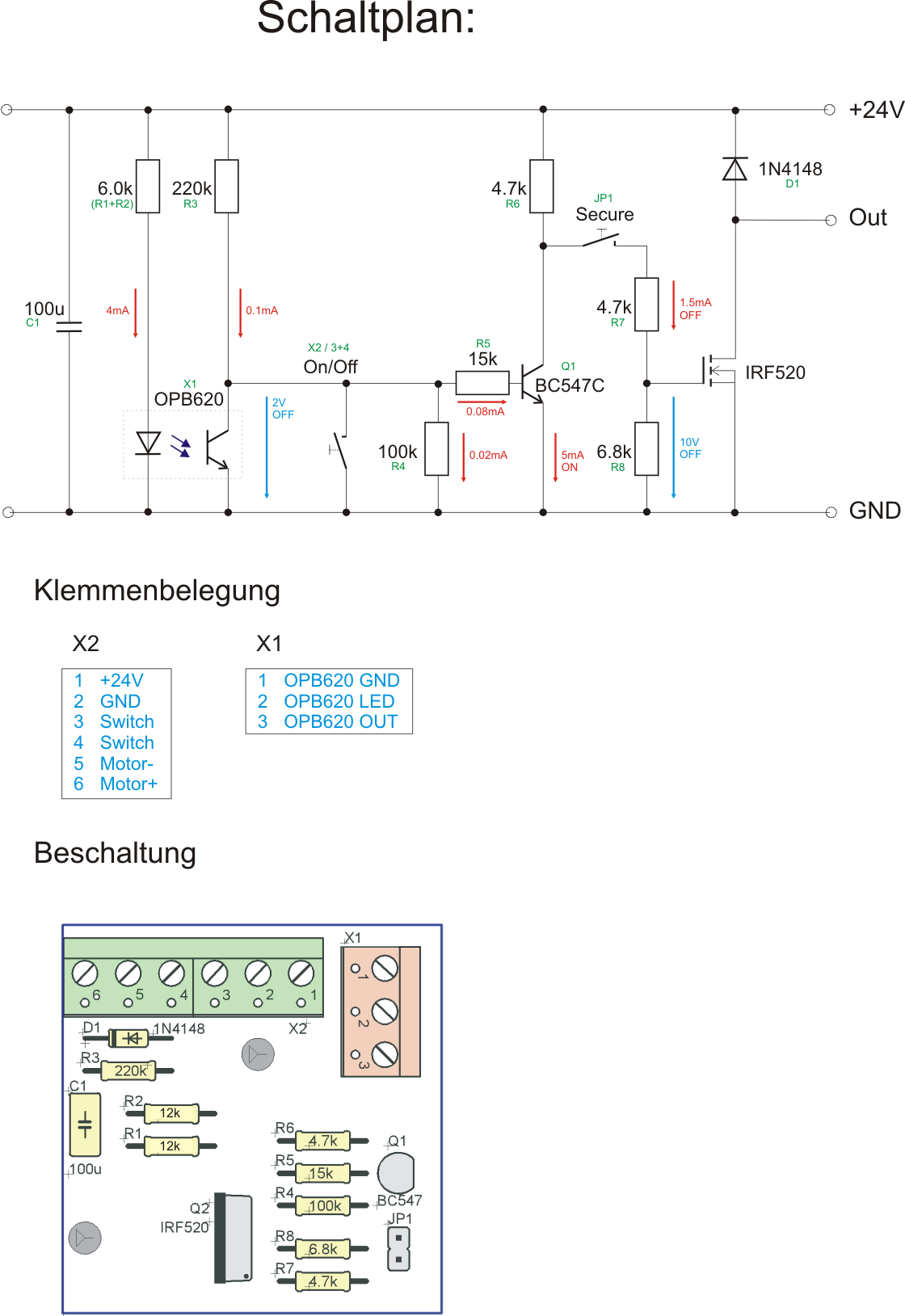

https://jlcpcb.com Gerber Files: VaggieCutterGerber.zip Eagle Files: VaggieCutterEagle.zip Schematic: Board-Schematic |
 |

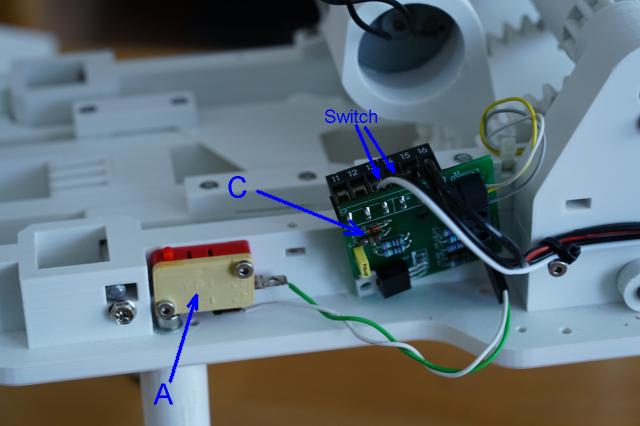

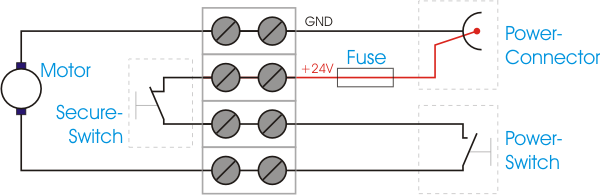

This part is optional. The optocoupler is used to bring back the cutter in the base position, if the device is turned off. Ich you don't use this optional part, connect the cables like this:
Steps:
