Parts:

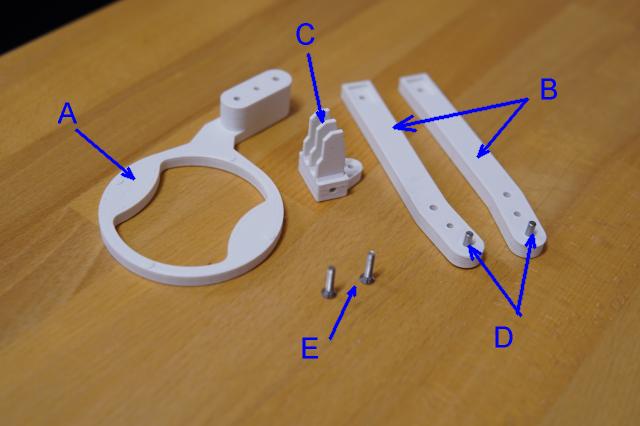

| Number | Count | Name | Description | Image |

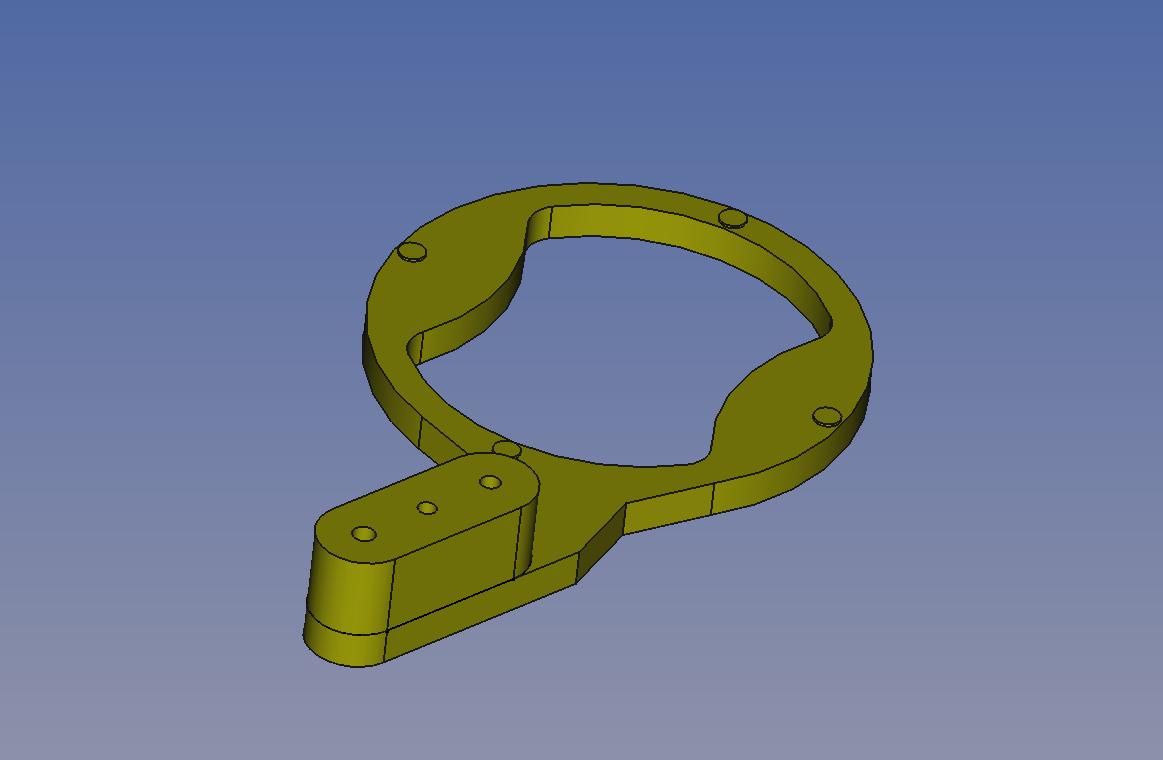

| A) | 1 | StopperLevler | Printed Part, print it with 4 layers at the side |
 |

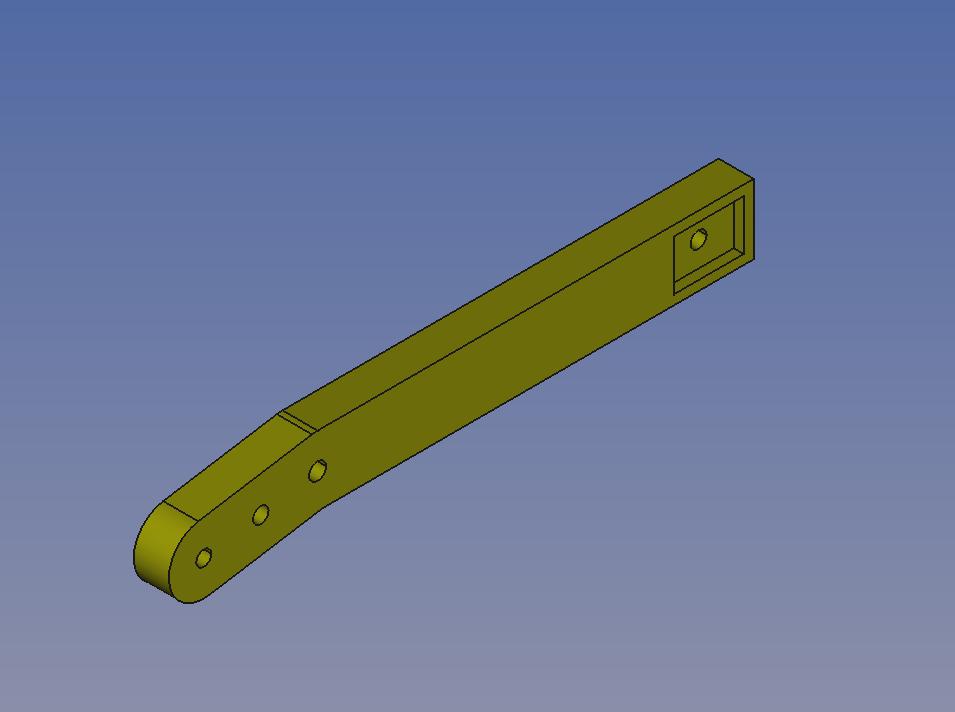

| B) | 2 | PusherWrist | Printed Part, print it with 4 layers at the side |
 |
| C) | 1 | TeethBody | Printed Part, print it with 4 layers at the side |
 |
| D) | 2 | Bolt 10x3mm | https://www.schraubenking.at/3-x-10mm-Zylinderstift-DIN-6325-Tol-m6-P005013 |
 |

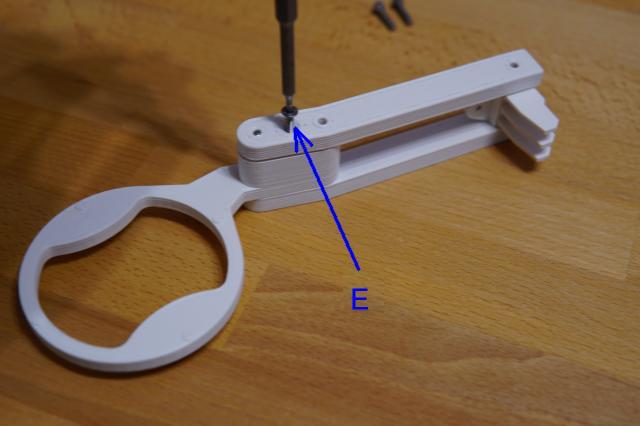

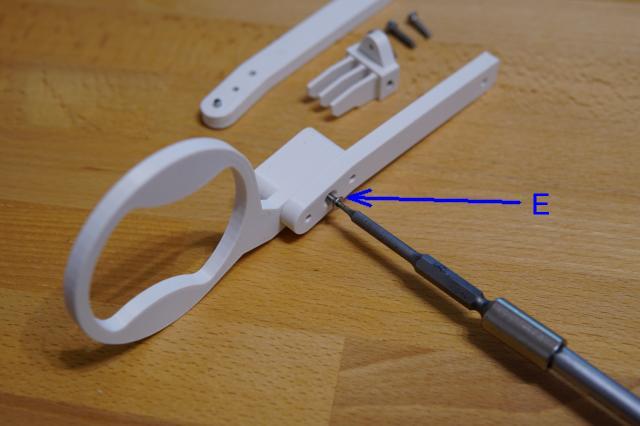

| E) | 2 | Countersunk Screw M3x14 mm | https://www.schraubenking.at/M3-x-14mm-Senkschrauben-DIN7991-Edelstahl-A2-P000330 |
 |

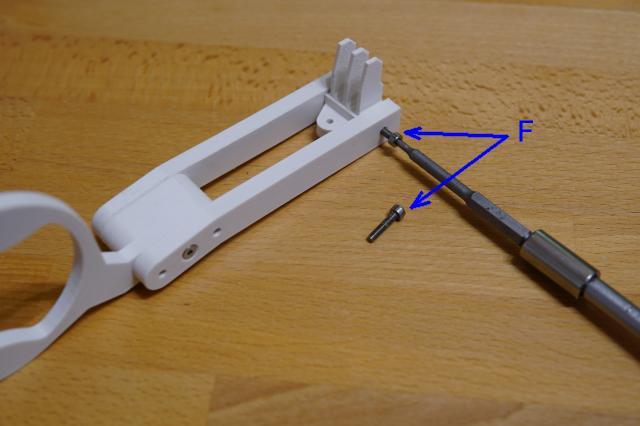

| F) | 2 | Screw M3x14 mm | https://www.schraubenking.at/M3-x-14mm-Zylinderschrauben-DIN-912-Edelstahl-A2-P003068 |
 |
Steps:
