| Build-Manual 004 |
|
| Main | <<Prev | Next>> |
Parts:

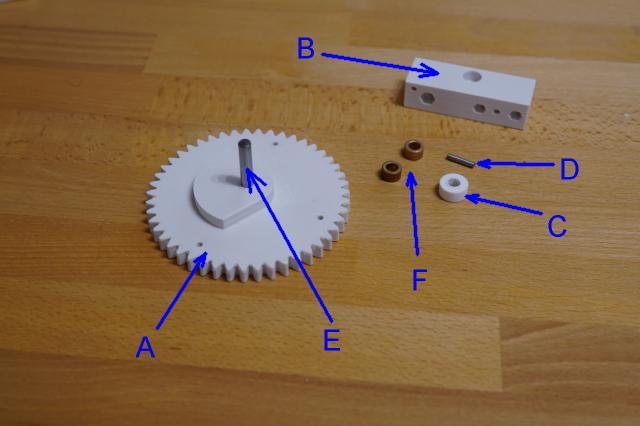

| Number | Count | Name | Description | Image |

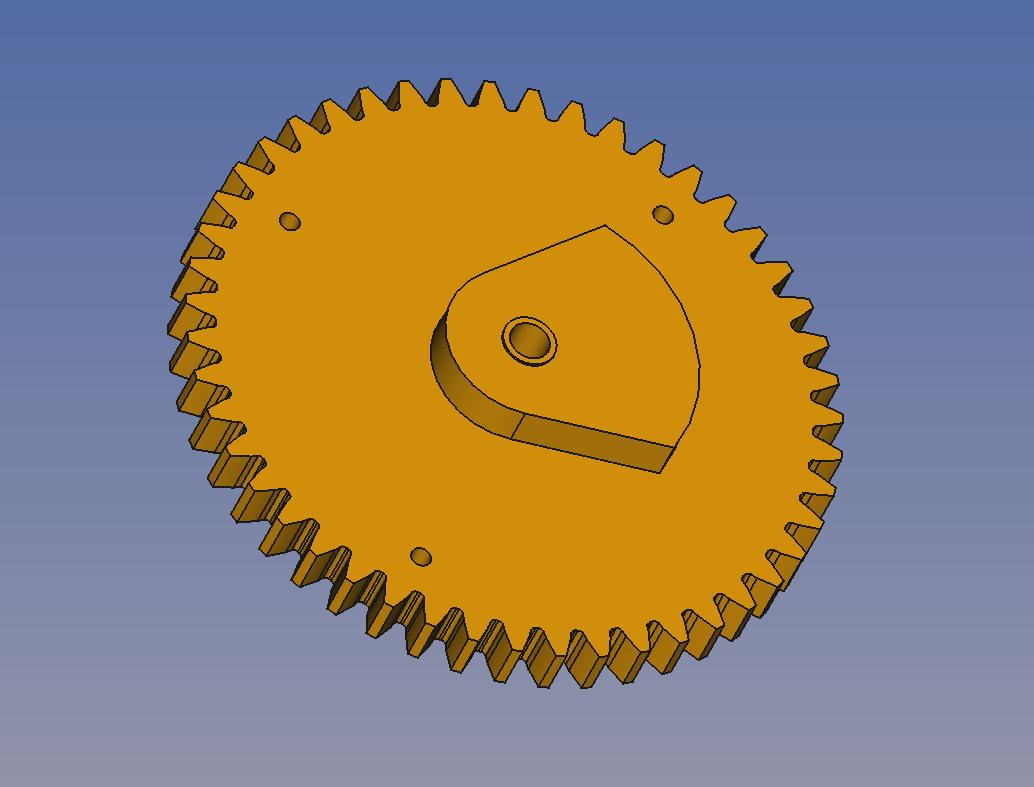

| A) | 1 | GearMiddleT43 | Printed Part, print it with 4 layers at the side |
 |

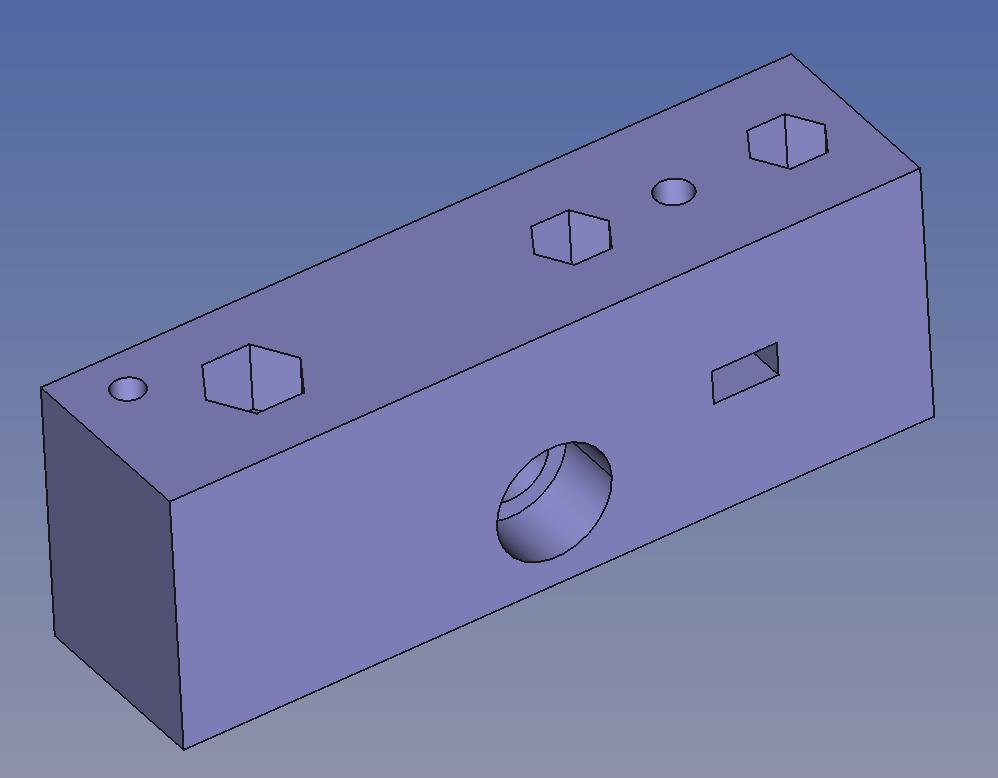

| B) | 1 | HolderMiddle | Printed Part |
 |
| C) | 1 | AxisRing | Printed Part, print it with 4 layers at the side |
 |
| D) | 1 | Bolt 15x3mm |
https://www.conrad.at/de/p/toolcraft-1066753-passkerbstift-x-l-3-mm-x-14-mm-edelstahl-a1-100-st-1066753.html
or https://www.schraubenking.at/3-x-18mm-Zylinderstift-DIN-6325-Tol-m6-P005172 and cut it to 15mm |
 |
| E) | 1 | Bolt 39x6mm | https://www.cncshop.at/Linearwelle-Praezisionswelle-R-06-mm-gehaertet-millimetergenauer-Zuschnitt |
|

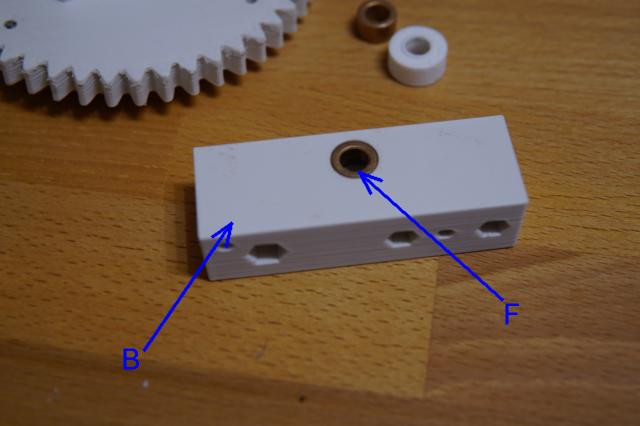

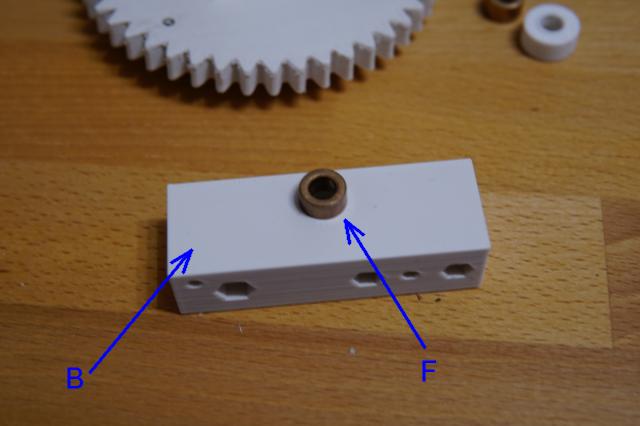

| F) | 2 | Bronze bearing 10x6mm (6mm axis) | https://www.cncshop.at/Gleitlager-Sinterbronze-DM-6-10-x-6-fuer-6-mm-Welle |
 |

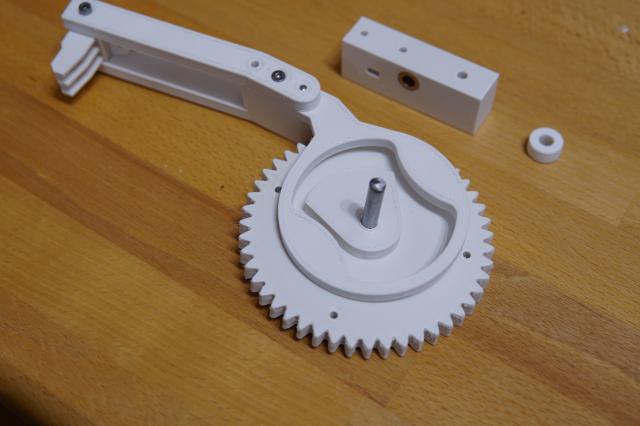

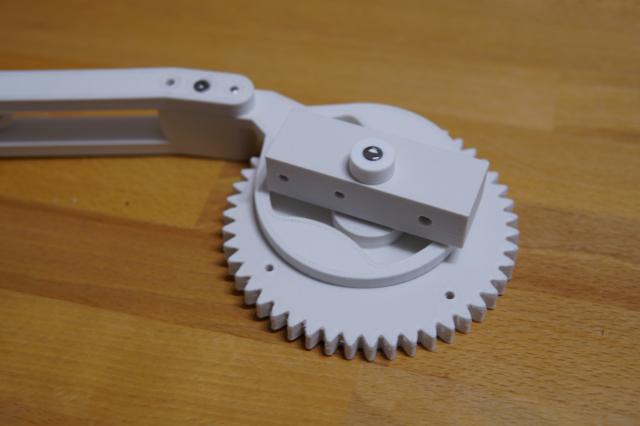

Steps:
