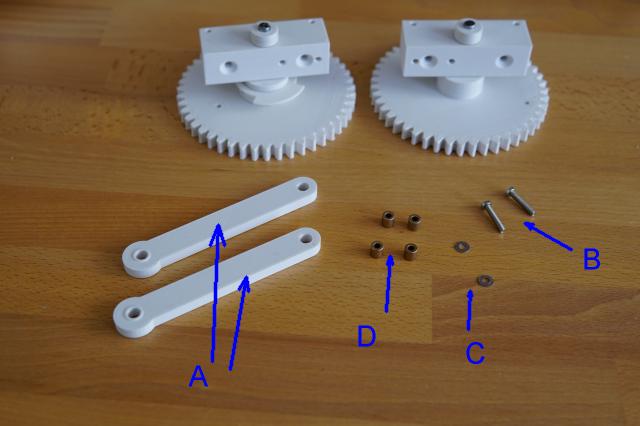

Parts:
| Number | Count | Name | Description | Image |

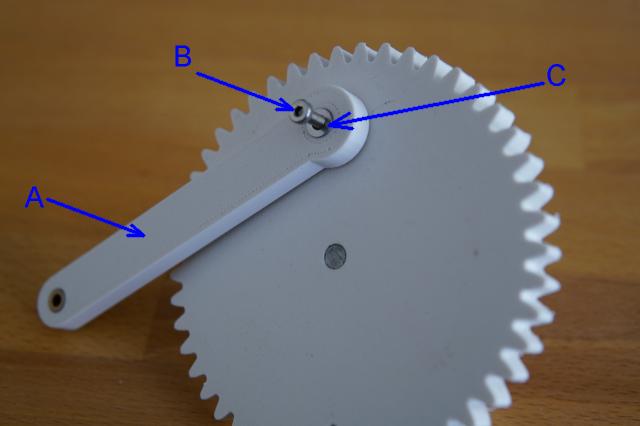

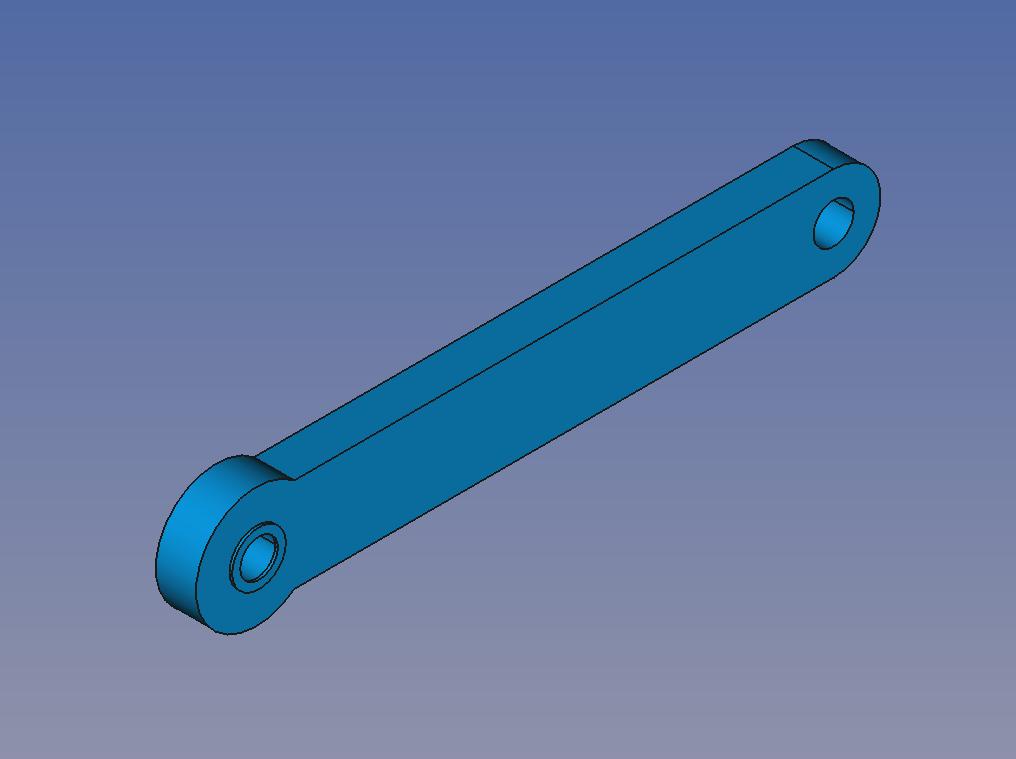

| A) | 2 | CutterWrist | Printed Part, print it with 4 layers at the side and 30% infill |
 |
| B) | 2 | Screw M3x16 mm | https://www.schraubenking.at/M3-x-16mm-Zylinderschrauben-DIN-912-Edelstahl-A2-P003069 |
 |
| C) | 2 | Shim
M3
|
https://www.cncshop.at/Linearwelle-Praezisionswelle-R-06-mm-gehaertet-millimetergenauer-Zuschnitt |
 |

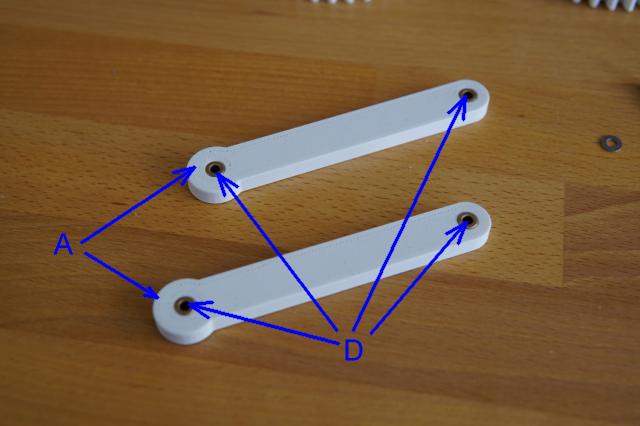

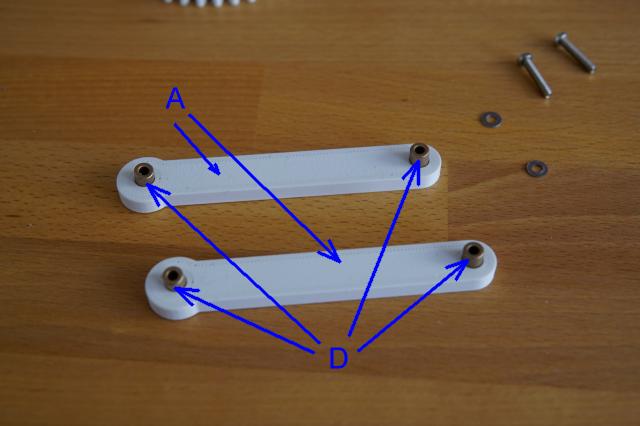

| D) | 4 | Bronze bearing 6x6mm (3mm axis) | https://www.cncshop.at/Gleitlager-Sinterbronze-DM-3-6-x-6-fuer-3-mm-Welle |
 |
Steps:
