| Build-Manual 007 |
|
| Main | <<Prev | Next>> |
Parts:

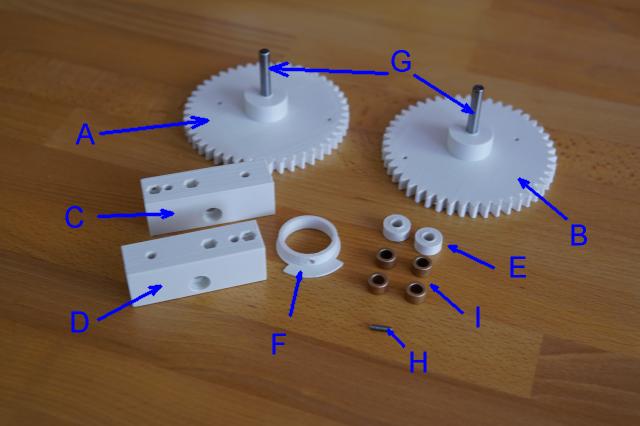

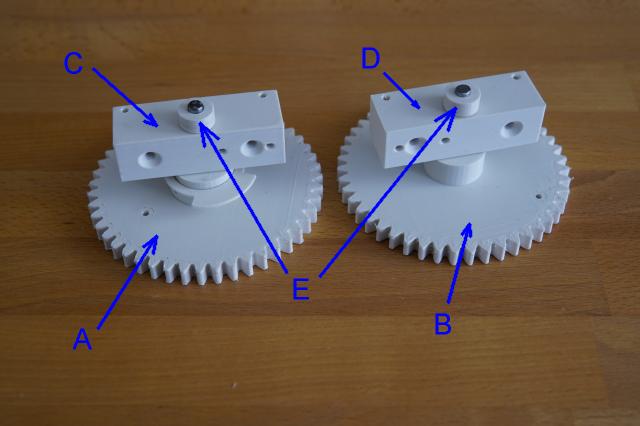

| Number | Count | Name | Description | Image |

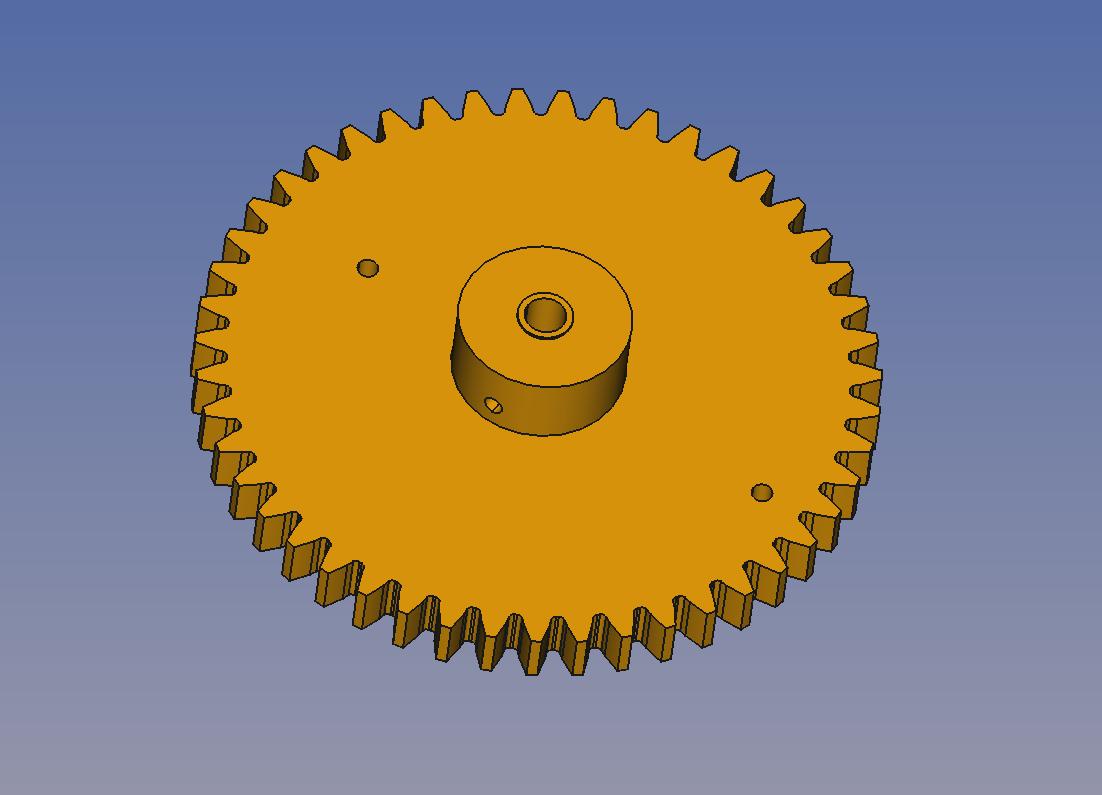

| A) | 1 | GearLeftT43 | Printed Part, print it with 4 layers at the side |
 |

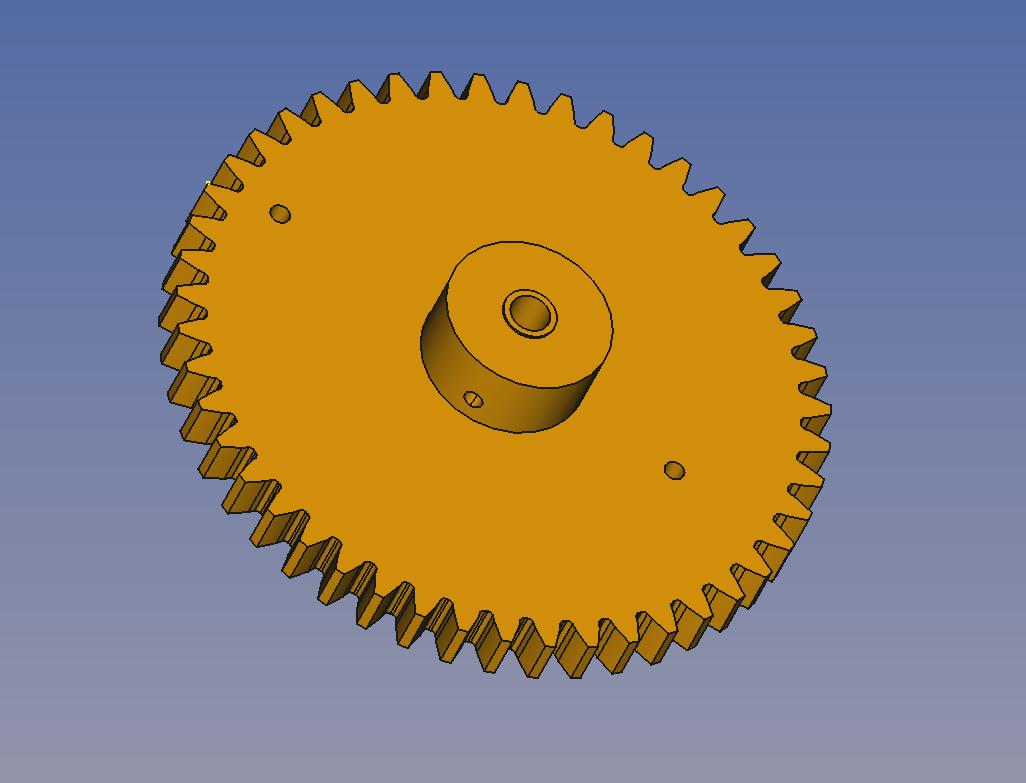

| B) | 1 | GearRightT43 | Printed Part, print it with 4 layers at the side |
 |

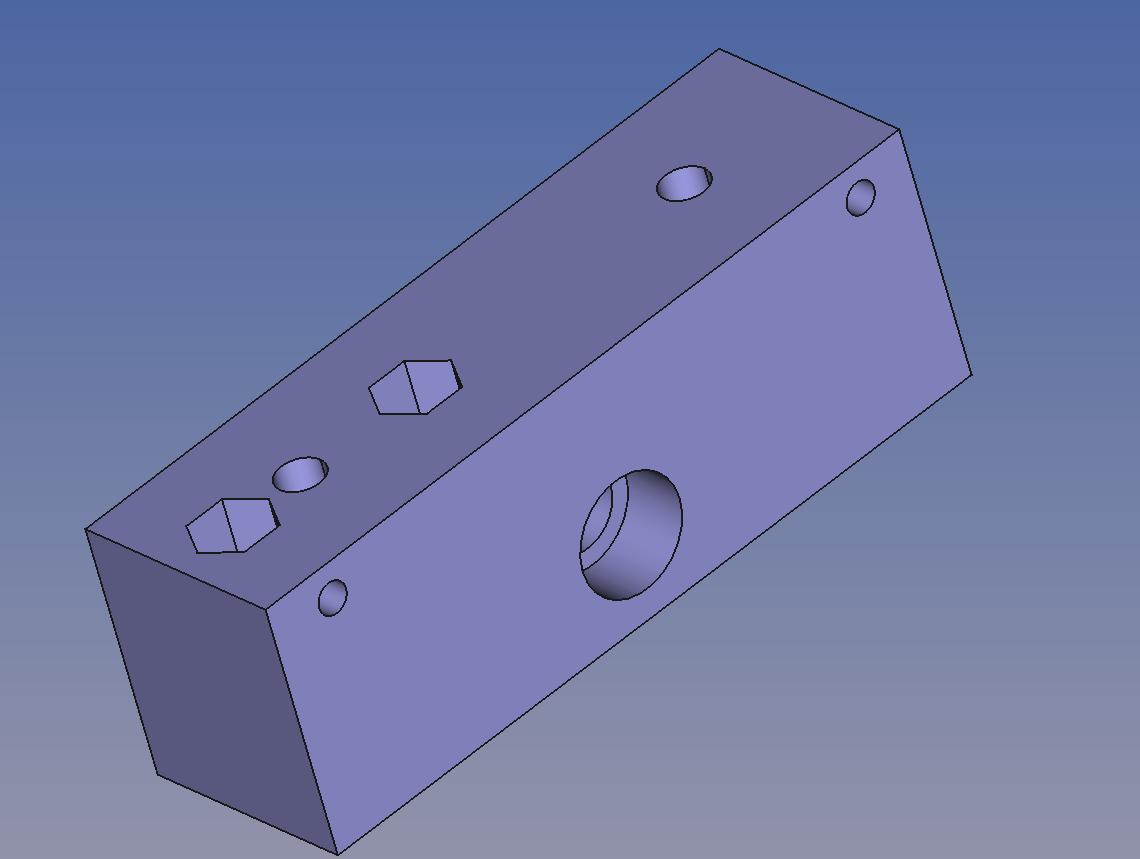

| C) | 1 | HolderLeft | Printed Part |
 |

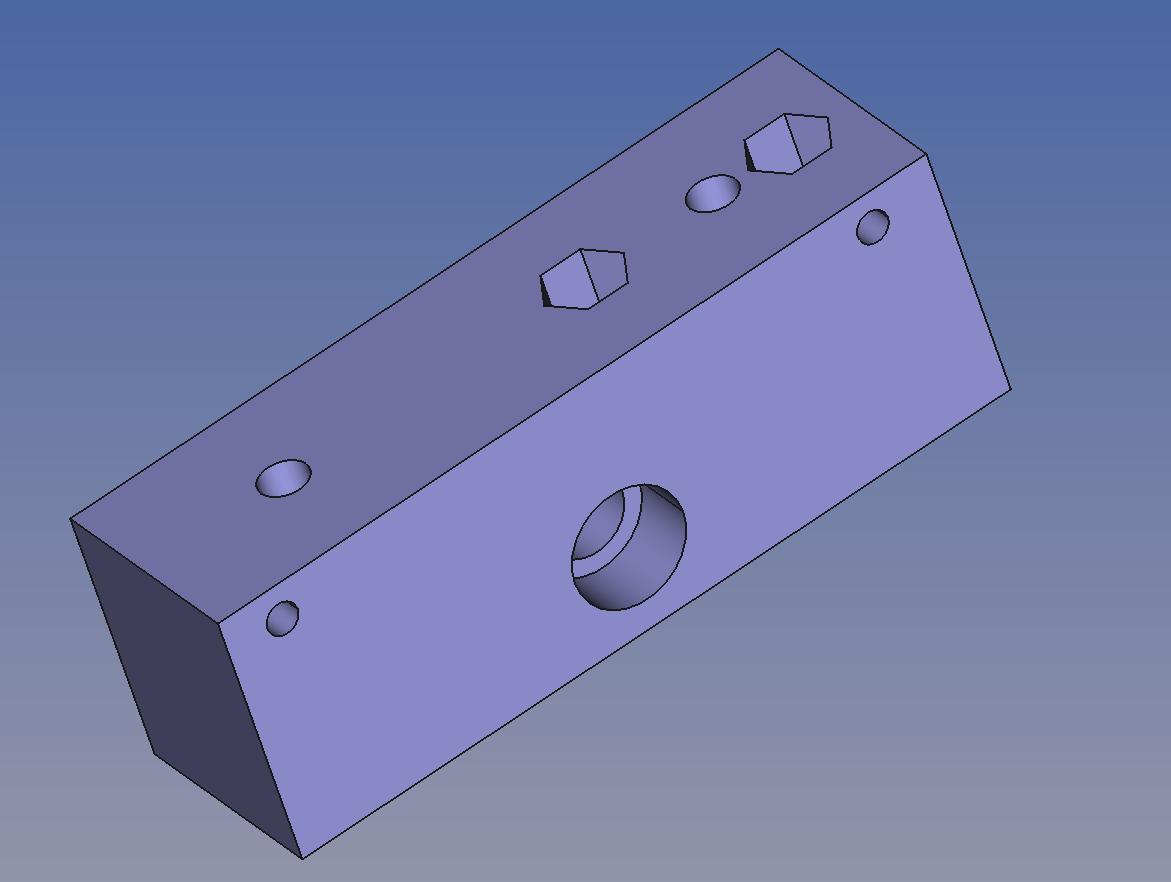

| D) | 1 | HolderRight | Printed Part |
 |
| E) | 1 | AxisRing | Printed Part, print it with 4 layers at the side |
 |

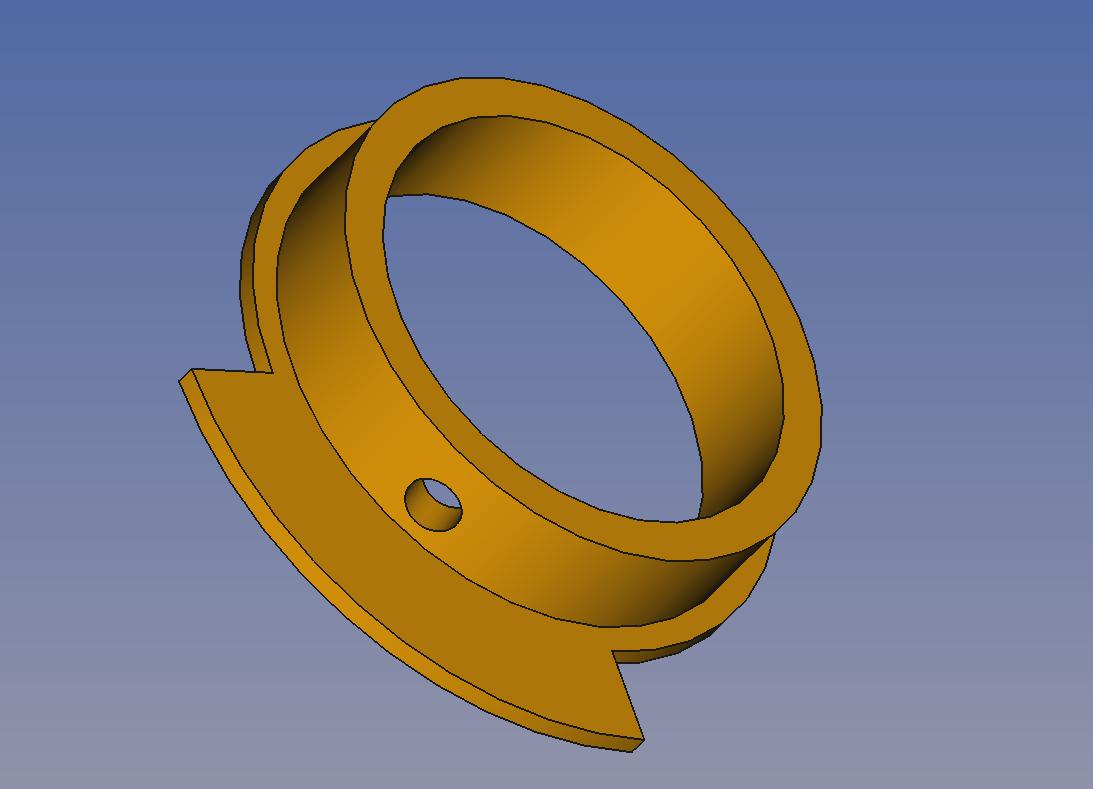

| F) | 1 | OptoDisk | Printed Part |
 |
| G) | 2 | Bolt 48x6mm | https://www.cncshop.at/Linearwelle-Praezisionswelle-R-06-mm-gehaertet-millimetergenauer-Zuschnitt |
 |
| H) | 4 | Grup Screw M3x8 mm | https://www.schraubenking.at/M3-x-8mm-Gewindestift-Kegelkuppe-DIN913-Edelstahl-A2-P005088 |
 |
| I) | 2 | Bronze bearing 10x6mm (6mm axis) | https://www.cncshop.at/Gleitlager-Sinterbronze-DM-6-10-x-6-fuer-6-mm-Welle |
 |

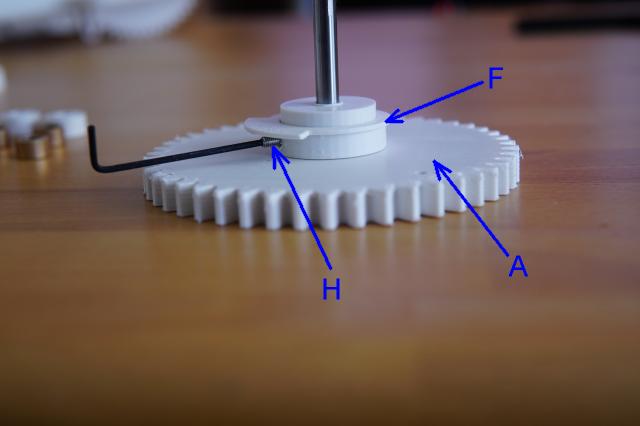

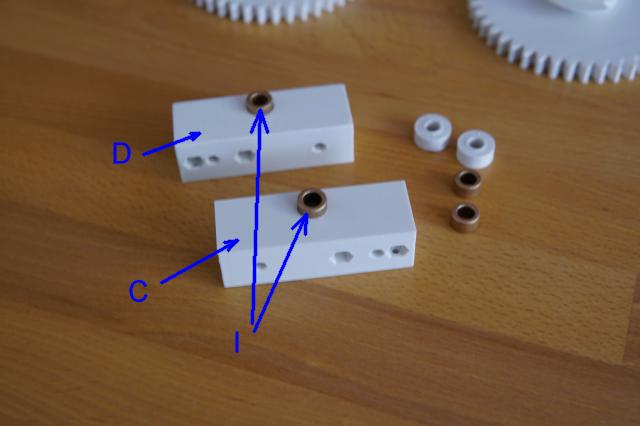

Steps:
