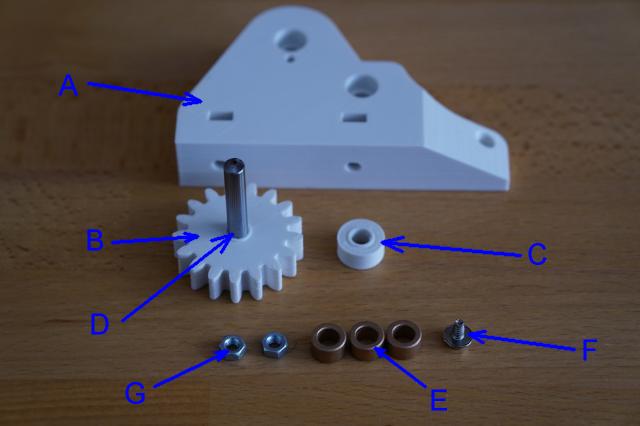

Parts:
| Number | Count | Name | Description | Image |

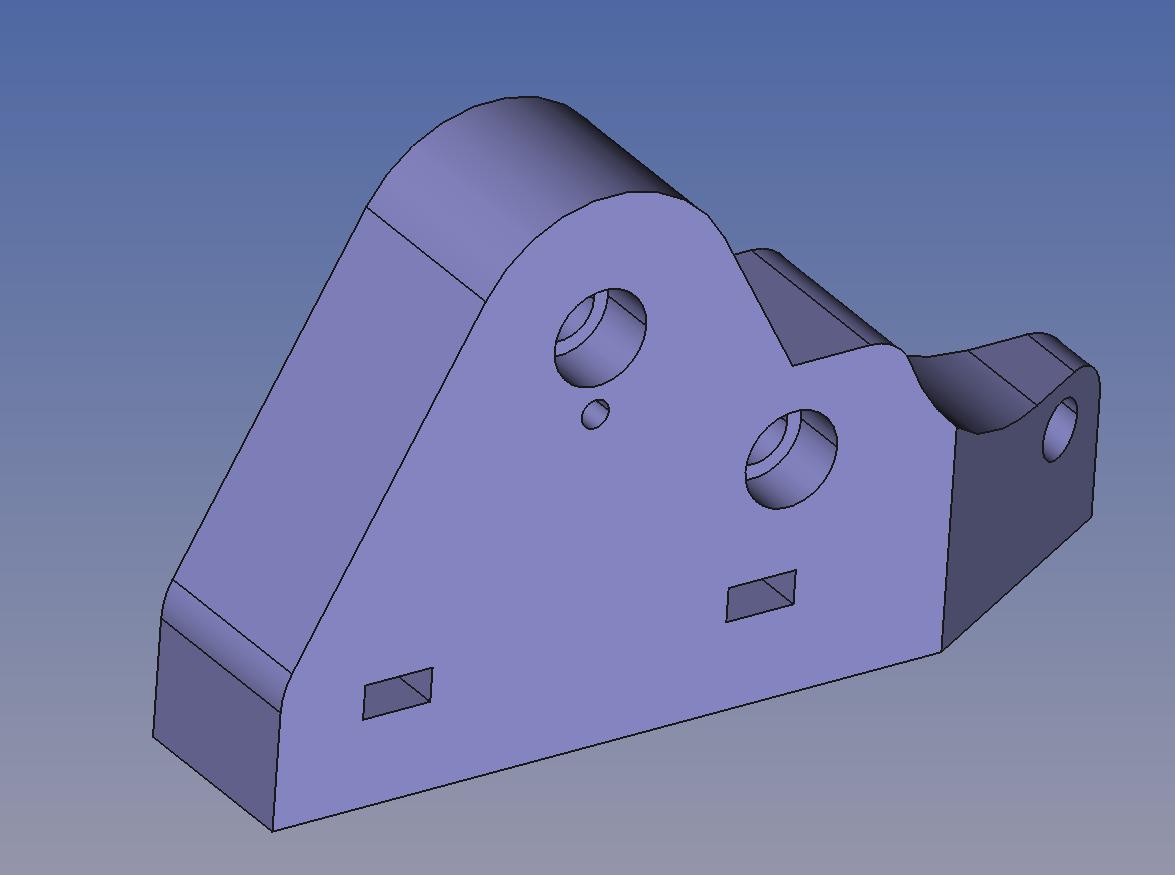

| A) | 1 | ExtenderRightEx | Printed Part |
 |
| B) | 1 | GearMiddle | Printed Part |
 |
| C) | 1 | AxisRing | Printed Part |
 |
| D) | 1 | Bolt 38x6mm | https://www.cncshop.at/Linearwelle-Praezisionswelle-R-06-mm-gehaertet-millimetergenauer-Zuschnitt |
 |

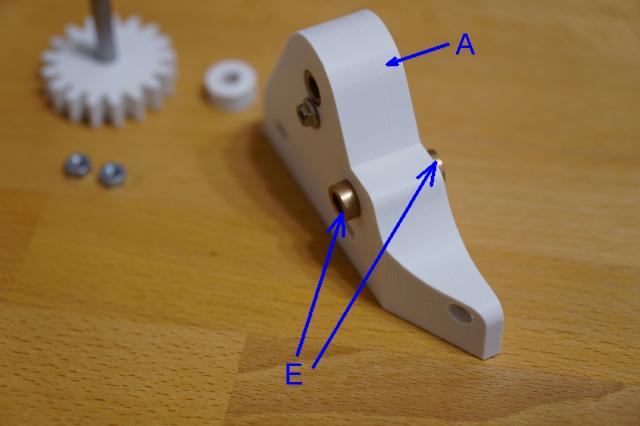

| E) | 3 | Bronze bearing 6x6mm (3mm axis) | https://www.cncshop.at/Gleitlager-Sinterbronze-DM-3-6-x-6-fuer-3-mm-Welle |
 |
| F) | 1 | PC Screw 6x3mm |
 |
|
| G) | 2 | Nut M4 | https://www.schraubenking.at/M4-Sechskantmuttern-DIN-934-Edelstahl-A2-P000448 |
 |
Steps:
