| Build-Manual 016 |
|
| Main | <<Prev | Next>> |

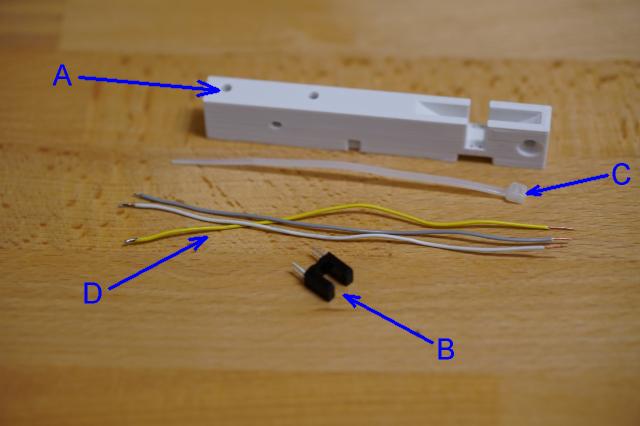

Parts:
| Number | Count | Name | Description | Image |

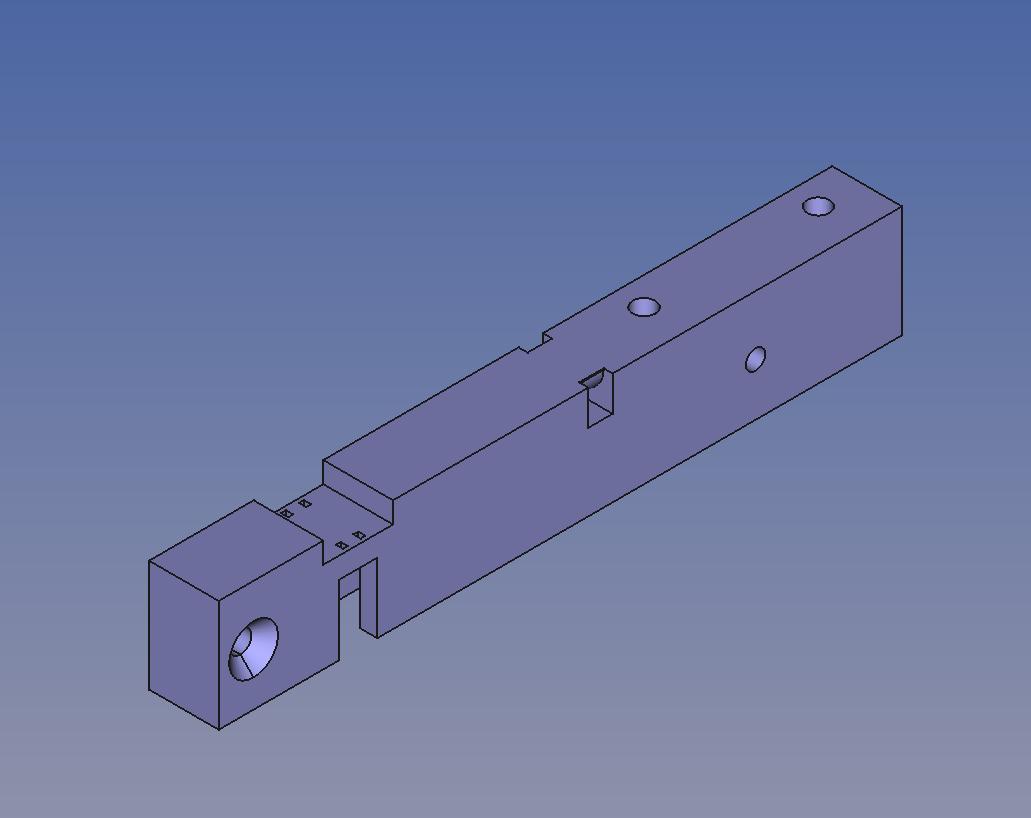

| A) | 1 | OptoHolder | Printed Part |
 |

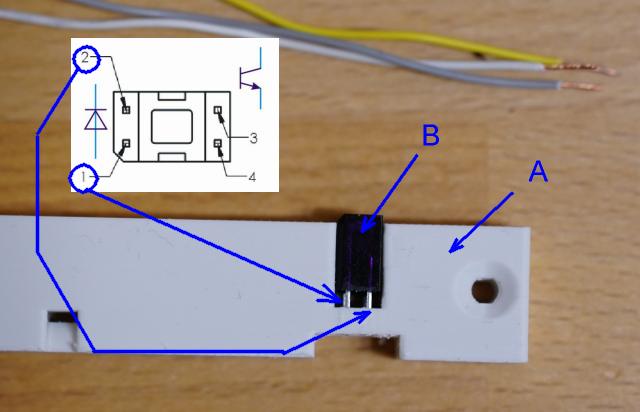

| B) | 1 | OPB620 optocoupler | https://at.rs-online.com/web/p/gabel-lichtschranke/3018442 |
 |
| C) | 1 | Cable Die | https://at.rs-online.com/web/p/kabelbinder/0178462/ |
 |
| D) | 3 | Cable 0.08 mm˛ / 10cm | https://at.rs-online.com/web/p/einzeladerleitungen/8840843/ |
 |

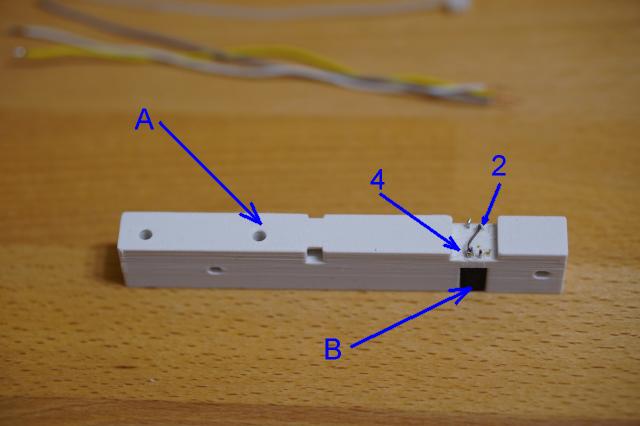

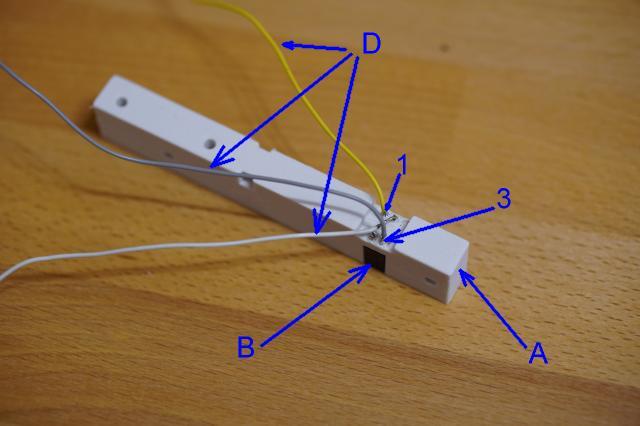

This part is optional. The optocoupler is used to bring back the cutter in the base position, if the device is turned off.
Steps:
