Parts:
| Number | Count | Name | Description | Image |

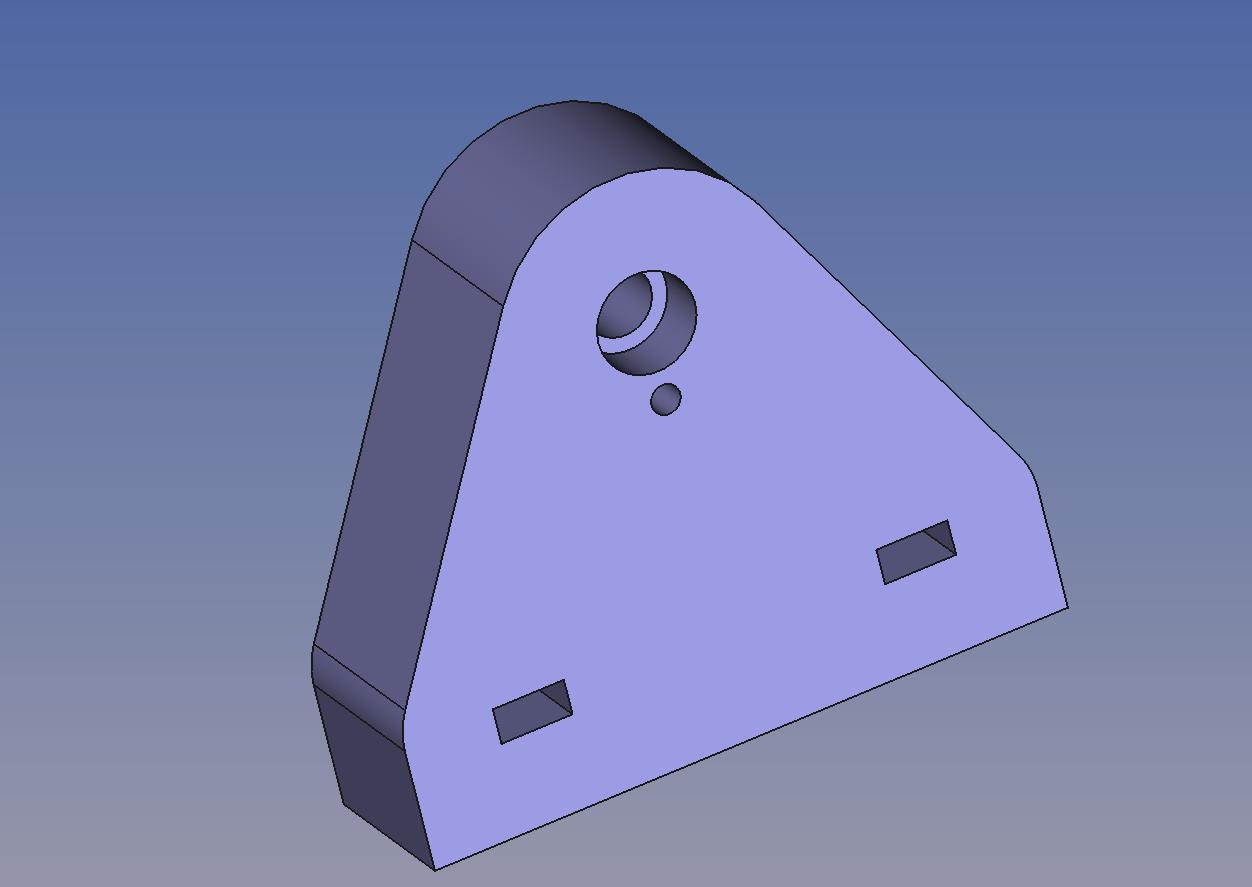

| A) | 1 | ExtenderLeft | Printed Part |
 |
| B) | 1 | Bronze bearing 6x6mm (3mm axis) | https://www.cncshop.at/Gleitlager-Sinterbronze-DM-3-6-x-6-fuer-3-mm-Welle |
 |

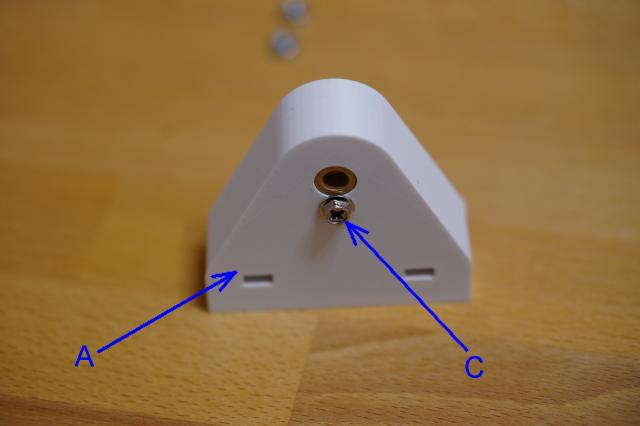

| C) | 1 | PC Screw 6x3mm |
 |
|

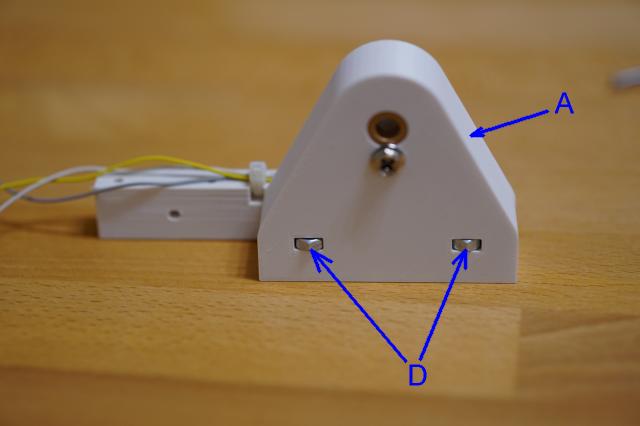

| D) | 2 | Nut M4 | https://www.schraubenking.at/M4-Sechskantmuttern-DIN-934-Edelstahl-A2-P000448 |
 |

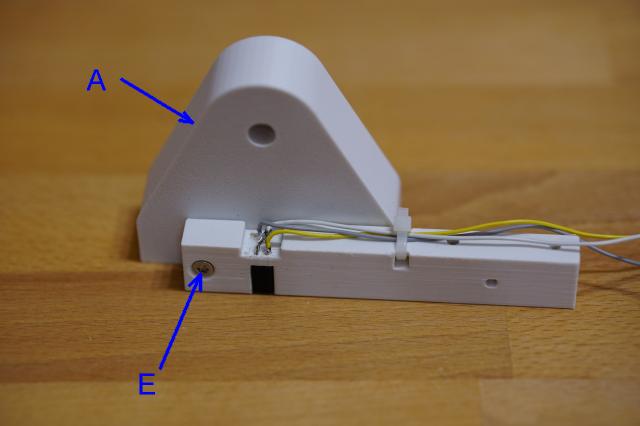

| E) | 1 | Countersunk Screw M3x16 mm | https://www.schraubenking.at/M3-x-16mm-Senkschrauben-DIN7991-Edelstahl-A2-P002443 |
 |
Steps:
