| Build-Manual 005 |
|
| Main | <<Prev | Next>> |
Parts:

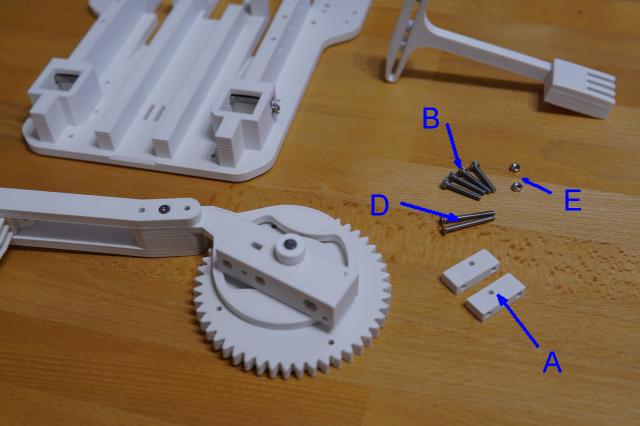

| Number | Count | Name | Description | Image |

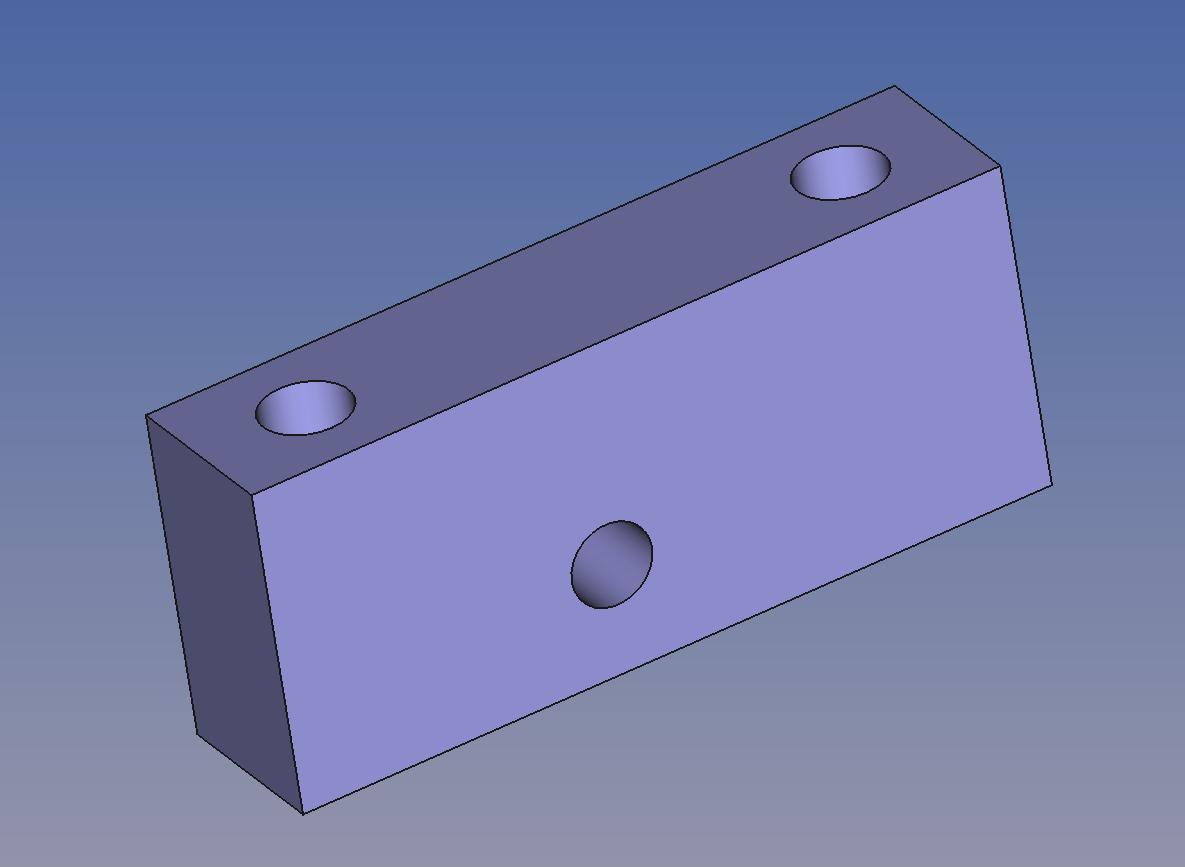

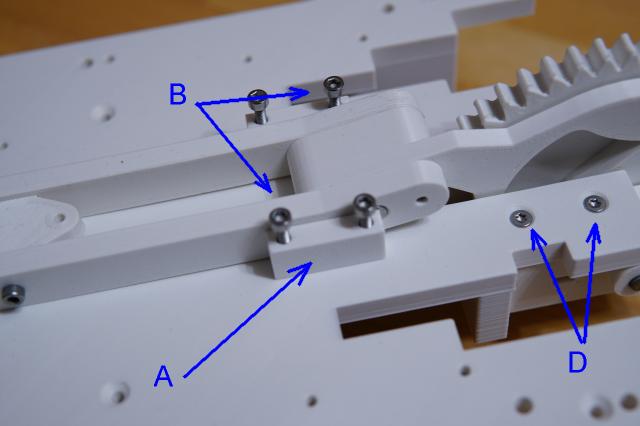

| A) | 1 | StopperHolder | Printed Part |
 |
| B) | 4 | Screw M3x20 mm | https://www.schraubenking.at/M3-x-20mm-Zylinderschrauben-DIN-912-Edelstahl-A2-P000571 |
 |
| C) | 1 | Bolt 40x3mm | https://www.schraubenking.at/3-x-40mm-Zylinderstift-Edelstahl-gem-DIN7-/-ISO2338-P005086 |
 |

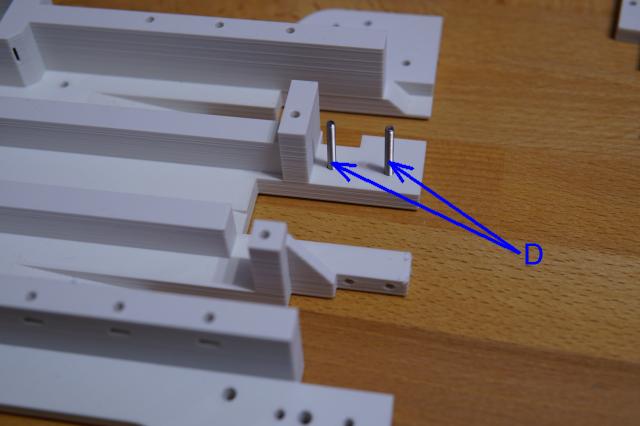

| D) | 2 | Countersunk Screw M3x30 mm | https://www.schraubenking.at/M3-x-30mm-Senkschrauben-DIN7991-Edelstahl-A2-P000360 |
 |

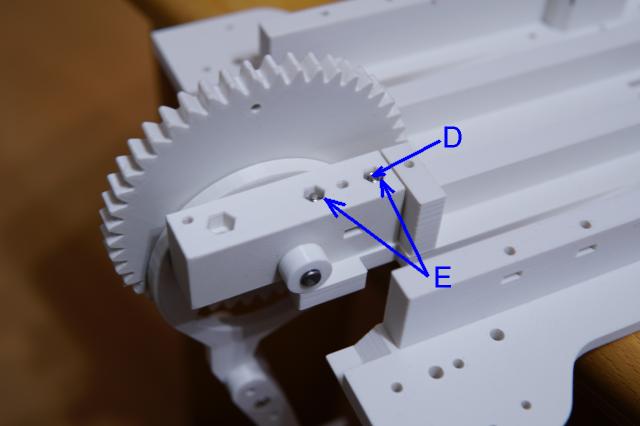

| E) | 2 | Nut M3 | https://www.schraubenking.at/M3-Sechskantmuttern-DIN-934-Edelstahl-A2-P000447 |
 |

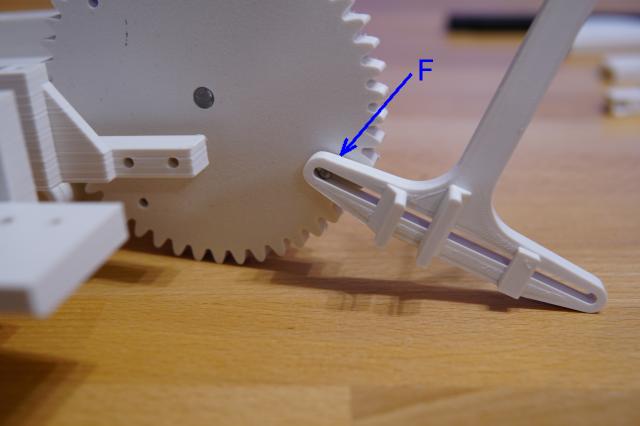

| F) | 1 | Plastic Shim M3 |
https://www.schraubenking.at/32mm-Unterlegscheiben-DIN-125-Polyamid-P005208
(It is also possible to print a shim) |
 |
Steps:
