| Build-Manual 006 |
|
| Main | <<Prev | Next>> |
Parts:

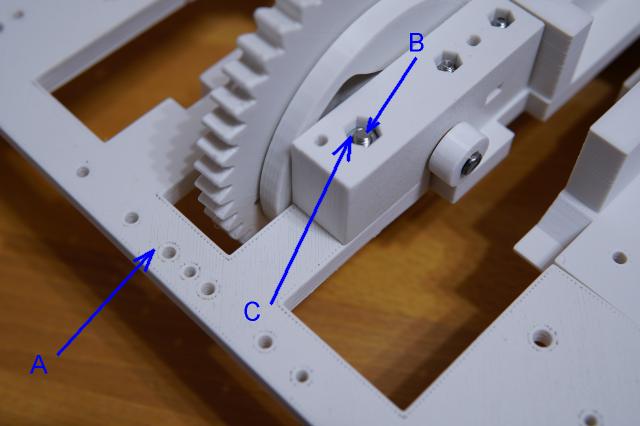

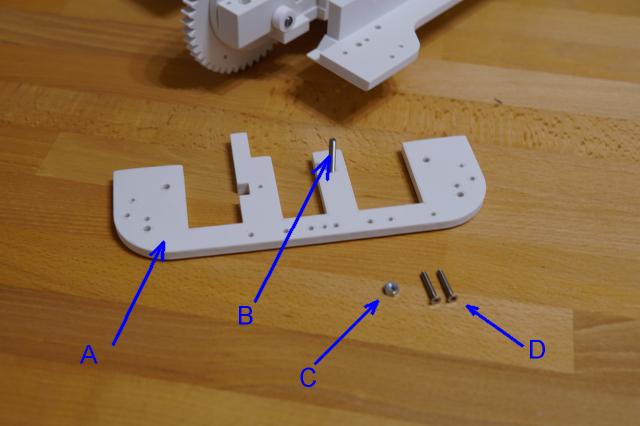

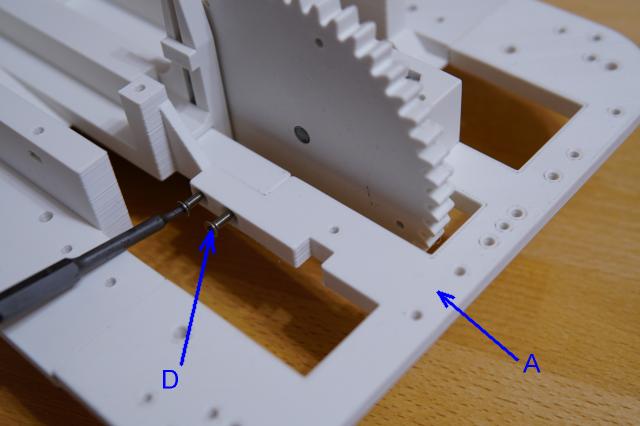

| Number | Count | Name | Description | Image |

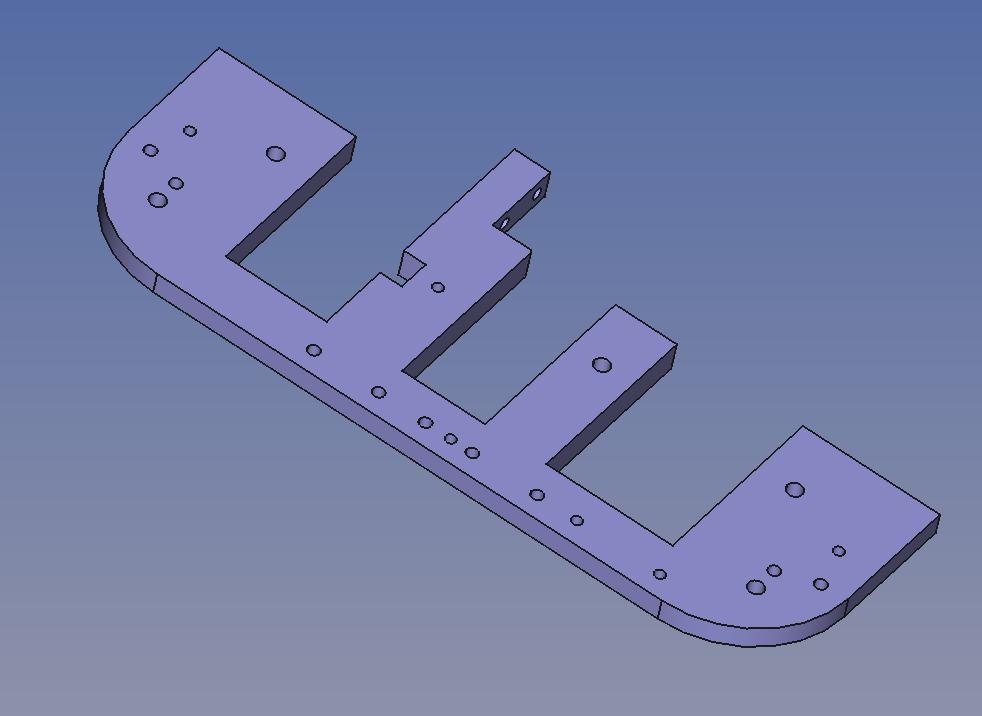

| A) | 1 | BackExtender | Printed Part |
 |
| B) | 1 | Countersunk Screw M4x30 mm | https://www.schraubenking.at/M4-x-30mm-Senkschrauben-DIN7991-Edelstahl-A2-P003633 |
 |
| C) | 1 | Nut M4 | https://www.schraubenking.at/M4-Sechskantmuttern-DIN-934-Edelstahl-A2-P000448 |
 |
| D) | 2 | Countersunk Screw M3x20 mm | https://www.schraubenking.at/M3-x-20mm-Senkschrauben-DIN7991-Edelstahl-A2-P003632 |
|
Steps:
